Exporting trace data with, e.g., length and azimuth attributes included

fractopo provides ready-to-use calculations for attributes such as the length and orientation of fracture traces or branches. These attributes, calculated with fractopo, might be useful for use elsewhere.

Two examples are provided:

  1. Call of fractopo provided functions to calculate length and orientation into new columns in a GeoDataFrame.

  2. Use of builtin Network functionality to realize these attributes into the trace_gdf used by the network and then exporting it afterwards.

Initializing and loading of example trace and area data

from pathlib import Path
from tempfile import TemporaryDirectory

import geopandas as gpd
import matplotlib.pyplot as plt

from fractopo.analysis.network import Network
from fractopo.general import Col, determine_azimuth

BASE_DIR_PATH = Path("..")

KB11_TRACE_GDF = gpd.read_file(
    BASE_DIR_PATH.joinpath(Path("tests/sample_data/KB11/KB11_traces.geojson"))
)
KB11_AREA_GDF = gpd.read_file(
    BASE_DIR_PATH.joinpath(Path("tests/sample_data/KB11/KB11_area.geojson"))
)

1. Call of fractopo provided functions

This method will not modify the trace geometries in any way. Only the attributes are calculated.

# Create copy so that the original KB11_TRACE_GDF is not modified
kb11_trace_gdf_1 = KB11_TRACE_GDF.copy()

Calculate length and azimuth

# ``geopandas``, through ``shapely``, already provides easy
# calculation of geometry lengths using the length attribute
kb11_trace_gdf_1["length"] = kb11_trace_gdf_1.geometry.length

# How to calculate the azimuth, i.e. orientation, is more subjective.
# ``fractopo`` defaults to a simple approach, where the orientation
# is defined solely by the start and end points of a trace.
kb11_trace_gdf_1["azimuth"] = [
    determine_azimuth(line=trace, halved=True)
    for trace in kb11_trace_gdf_1.geometry.values
]

Export trace GeoDataFrame

# Do not use TemporaryDirectory yourself if you want to persist the data!
with TemporaryDirectory() as tmp_dir:
    output_path_1 = Path(tmp_dir).joinpath("KB11_traces_with_length_and_azimuth.gpkg")
    kb11_trace_gdf_1.to_file(output_path_1, driver="GPKG")

2. Use of builtin Network functionality

This method can modify the traces by, e.g., truncating them to the target area (truncate_traces=True).

KB11_NETWORK = Network(
    name="KB11",
    trace_gdf=KB11_TRACE_GDF,
    area_gdf=KB11_AREA_GDF,
    truncate_traces=True,
    circular_target_area=False,
    determine_branches_nodes=True,
    snap_threshold=0.001,
    azimuth_set_names=("N-S", "E-W"),
    azimuth_set_ranges=((135, 45), (45, 135)),
)

Check that length and azimuth columns do not pre-exist in network

assert (
    len(
        set(KB11_NETWORK.trace_gdf.columns).intersection(
            {Col.LENGTH.value, Col.AZIMUTH.value}
        )
    )
    == 0
)

Access trace length and orientation arrays

KB11_NETWORK.trace_length_array
KB11_NETWORK.trace_azimuth_array

# Check that underlying GeoDataFrame now contains columns for length and
# azimuths
assert (
    len(
        set(KB11_NETWORK.trace_gdf.columns).intersection(
            {Col.LENGTH.value, Col.AZIMUTH.value}
        )
    )
    == 2
)

Export trace GeoDataFrame

# Do not use TemporaryDirectory yourself if you want to persist the data!
with TemporaryDirectory() as tmp_dir:
    output_path_2 = Path(tmp_dir).joinpath("KB11_traces_with_network_attributes.gpkg")
    KB11_NETWORK.trace_gdf.to_file(output_path_2, driver="GPKG")

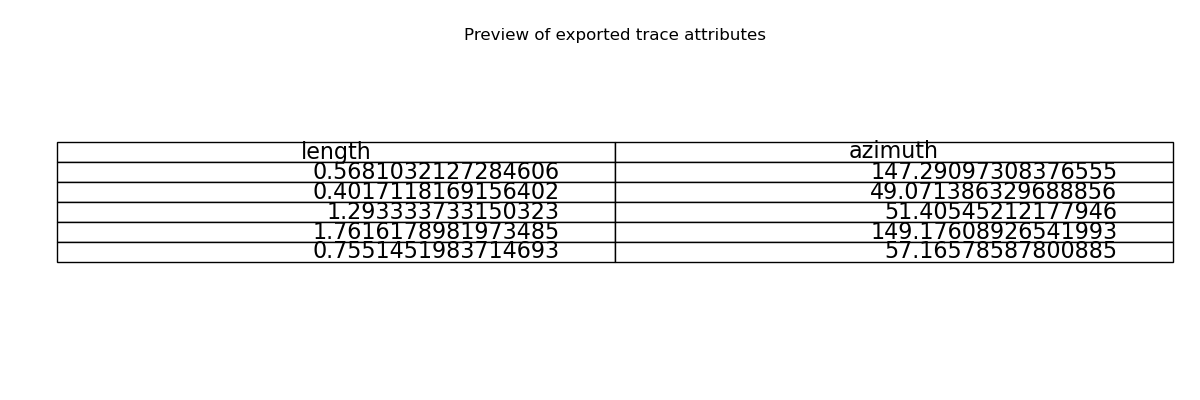

Show a preview of the exported data as a table

preview_df = KB11_NETWORK.trace_gdf[[Col.LENGTH.value, Col.AZIMUTH.value]].head(5)

fig, ax = plt.subplots(figsize=(12, 4))
ax.axis("off")
tbl = ax.table(cellText=preview_df.values, colLabels=preview_df.columns, loc="center")
tbl.set_fontsize(16)
tbl.scale(1.2, 1.2)
ax.set_title("Preview of exported trace attributes")
Preview of exported trace attributes
Text(0.5, 1.0, 'Preview of exported trace attributes')
