Automatic azimuth set detection

This example covers two automatic azimuth-set workflows.

First, fractopo.analysis.network.Network detects and trims sets during initialization when azimuth_set_ranges is omitted. It stores the resolved ranges and centers for later analysis and plotting.

The second workflow calls fractopo.analysis.automatic_azimuth_sets.automatic_azimuth_sets and trim_azimuth_set_ranges separately. This lets you inspect the detected centers and ranges, then try different values for n_sets and retained_length_fraction before deciding which ranges to use in a Network.

Detection uses trace orientations and weighted trace lengths. Higher retained fractions, up to 1, give tighter ranges. Lower fractions give wider ranges. Check the results against the geology of the target area.

Imports and example data

from pprint import pprint

import matplotlib.pyplot as plt
import numpy as np
from example_data import KB11_NETWORK

from fractopo import Network
from fractopo.analysis.automatic_azimuth_sets import (
    automatic_azimuth_sets,
    trim_azimuth_set_ranges,
)

Workflow 1: let Network resolve the azimuth sets

Network detects and trims the sets during initialization. The resolved ranges and centers are available on the network for plotting and analysis.

kb11_network_automatic_sets = Network(
    trace_gdf=KB11_NETWORK.trace_gdf[["geometry"]],
    area_gdf=KB11_NETWORK.area_gdf,
    name="KB11 automatic sets",
    truncate_traces=KB11_NETWORK.truncate_traces,
    circular_target_area=KB11_NETWORK.circular_target_area,
    determine_branches_nodes=KB11_NETWORK.determine_branches_nodes,
    snap_threshold=KB11_NETWORK.snap_threshold,
    n_azimuth_sets=2,
    random_state=0,
    # Set ranges are not given by user so they are automatically detected
    azimuth_set_ranges=None,
    # Higher values retain tighter ranges; lower values retain wider ranges.
    retained_azimuth_length_fraction=0.8,
)
print("Resolved center azimuths (degrees):")
pprint(np.round(kb11_network_automatic_sets.azimuth_set_centers, 1))
print("Resolved trimmed set ranges (degrees):")
pprint(kb11_network_automatic_sets.azimuth_set_ranges)
print("Trace counts by resolved azimuth set:")
pprint(kb11_network_automatic_sets.trace_azimuth_set_counts)

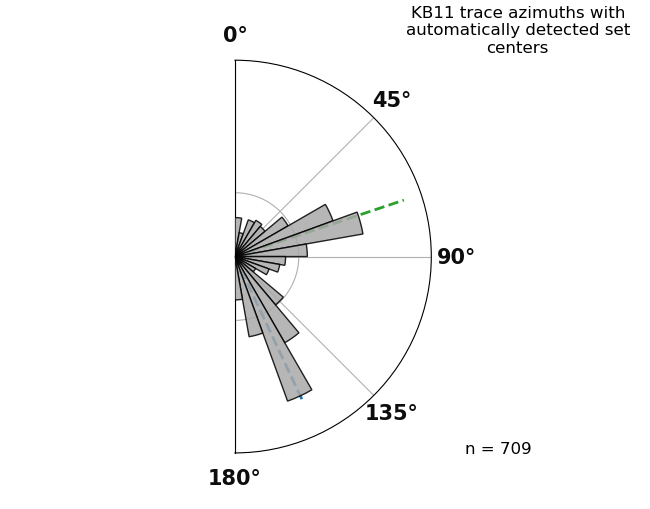

# The detected centers and trimmed ranges are available on the initialized
# ``Network`` and can be plotted through the normal plotting API.
kb11_network_automatic_sets.plot_trace_azimuth(
    visualize_sets=True, append_azimuth_set_text=True
)
plt.show()

Resolved center azimuths (degrees):
array([ 71.5, 154.9])
Resolved trimmed set ranges (degrees):
((53.1996151097397, 95.99141298765066), (139.8791520385272, 164.78907177907718))
Trace counts by resolved azimuth set:
{'1': 241, '2': 236}

Workflow 2: inspect the helper functions and iterate manually

Inspect the intermediate results and change the parameters before creating a Network with the ranges you want to use.

Start from the trace azimuths

The KB11 trace azimuths are axial values in the range [0, 180). Thus, 0° and 180° represent the same direction.

azimuths = KB11_NETWORK.trace_azimuth_array
lengths = KB11_NETWORK.trace_length_array
print(f"Number of trace azimuths: {azimuths.size}")
pprint(azimuths[:10])

Number of trace azimuths: 709
array([147.29097308,  49.07138633,  51.40545212, 149.17608927,
        57.16578588, 147.55474179, 154.23270791,  34.42233604,
        80.57016745,  42.86524189])

Detect candidate sets

Set how many groups to find. Longer traces have more influence on the centers because clustering weights each azimuth by trace length. The fixed random state makes this example reproducible. Try other n_sets values to compare the results.

n_sets = 2
centers, ranges = automatic_azimuth_sets(
    azimuths,
    lengths,
    n_sets=n_sets,
    random_state=0,
)

print(f"Detected {n_sets} sets")
print("Detected center azimuths (degrees):")
pprint(np.round(np.sort(centers), 1))

print("Detected set ranges (degrees):")
pprint(tuple(tuple(np.round(range_tuple, 1)) for range_tuple in ranges))

Detected 2 sets
Detected center azimuths (degrees):
array([ 71.5, 154.9])
Detected set ranges (degrees):
((np.float64(114.5), np.float64(21.2)), (np.float64(23.2), np.float64(113.3)))

Review the detected ranges before trimming

Plot the detected ranges on a temporary Network. The printed values help interpret broad ranges that may be hard to read from the rose plot.

inspection_network = Network(
    trace_gdf=KB11_NETWORK.trace_gdf[["geometry"]],
    area_gdf=KB11_NETWORK.area_gdf,
    name="KB11 detected ranges",
    truncate_traces=KB11_NETWORK.truncate_traces,
    circular_target_area=KB11_NETWORK.circular_target_area,
    determine_branches_nodes=KB11_NETWORK.determine_branches_nodes,
    snap_threshold=KB11_NETWORK.snap_threshold,
    azimuth_set_names=tuple(str(index) for index in range(n_sets)),
    azimuth_set_ranges=ranges,
)

print("Inspection network set ranges (degrees):")
pprint(tuple(tuple(np.round(range_tuple, 1)) for range_tuple in ranges))
inspection_network.plot_trace_azimuth(visualize_sets=True, append_azimuth_set_text=True)
plt.show()

Inspection network set ranges (degrees):
((np.float64(114.5), np.float64(21.2)), (np.float64(23.2), np.float64(113.3)))

Trim the detected ranges

trim_azimuth_set_ranges narrows each detected range to retain the chosen fraction of its assigned weighted trace length. Traces outside the trimmed ranges are assigned to the null set. Adjust the fraction if the ranges look too broad or too narrow.

retained_length_fraction = 0.8
trimmed_ranges, trimmed_labels = trim_azimuth_set_ranges(
    azimuths,
    lengths,
    ranges,
    retained_length_fraction=retained_length_fraction,
)
trimmed_set_names = tuple(f"{start:.0f}-{end:.0f}" for start, end in trimmed_ranges)

print("Trimmed set ranges (degrees):")
pprint(tuple(tuple(np.round(range_tuple, 1)) for range_tuple in trimmed_ranges))
print("Classified trace counts, including traces in the null set:")
pprint(
    {
        str(key): int(val)
        for key, val in zip(*np.unique(trimmed_labels, return_counts=True), strict=True)
    }
)

Trimmed set ranges (degrees):
((np.float64(139.9), np.float64(164.8)), (np.float64(53.2), np.float64(96.0)))
Classified trace counts, including traces in the null set:
{'-1': 241, '0': 236, '1': 232}

Build a final Network from the inspected result

Pass the ranges you want to keep into Network as a manual definition.

tuned_network = Network(
    trace_gdf=KB11_NETWORK.trace_gdf[["geometry"]],
    area_gdf=KB11_NETWORK.area_gdf,
    name="KB11 automatic sets",
    truncate_traces=KB11_NETWORK.truncate_traces,
    circular_target_area=KB11_NETWORK.circular_target_area,
    determine_branches_nodes=KB11_NETWORK.determine_branches_nodes,
    snap_threshold=KB11_NETWORK.snap_threshold,
    azimuth_set_names=trimmed_set_names,
    azimuth_set_ranges=trimmed_ranges,
)

print("Trace counts by tuned azimuth set:")
pprint(tuned_network.trace_azimuth_set_counts)

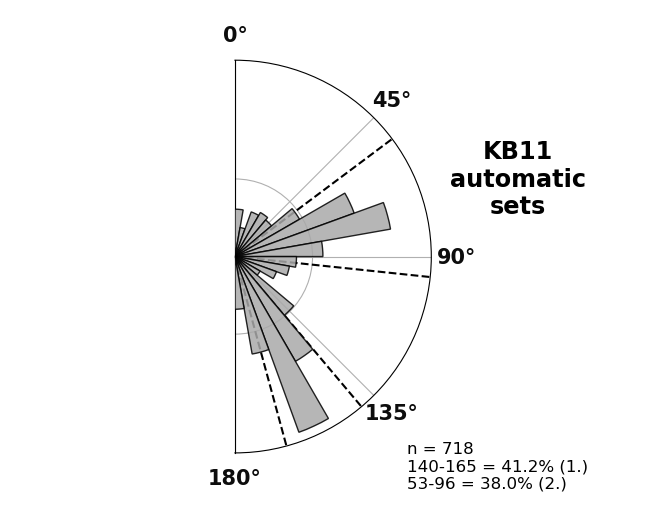

tuned_network.plot_trace_azimuth(
    visualize_sets=True, add_abundance_order=True, append_azimuth_set_text=True
)
plt.show()

Trace counts by tuned azimuth set:
{'140-165': 236, '53-96': 240}
